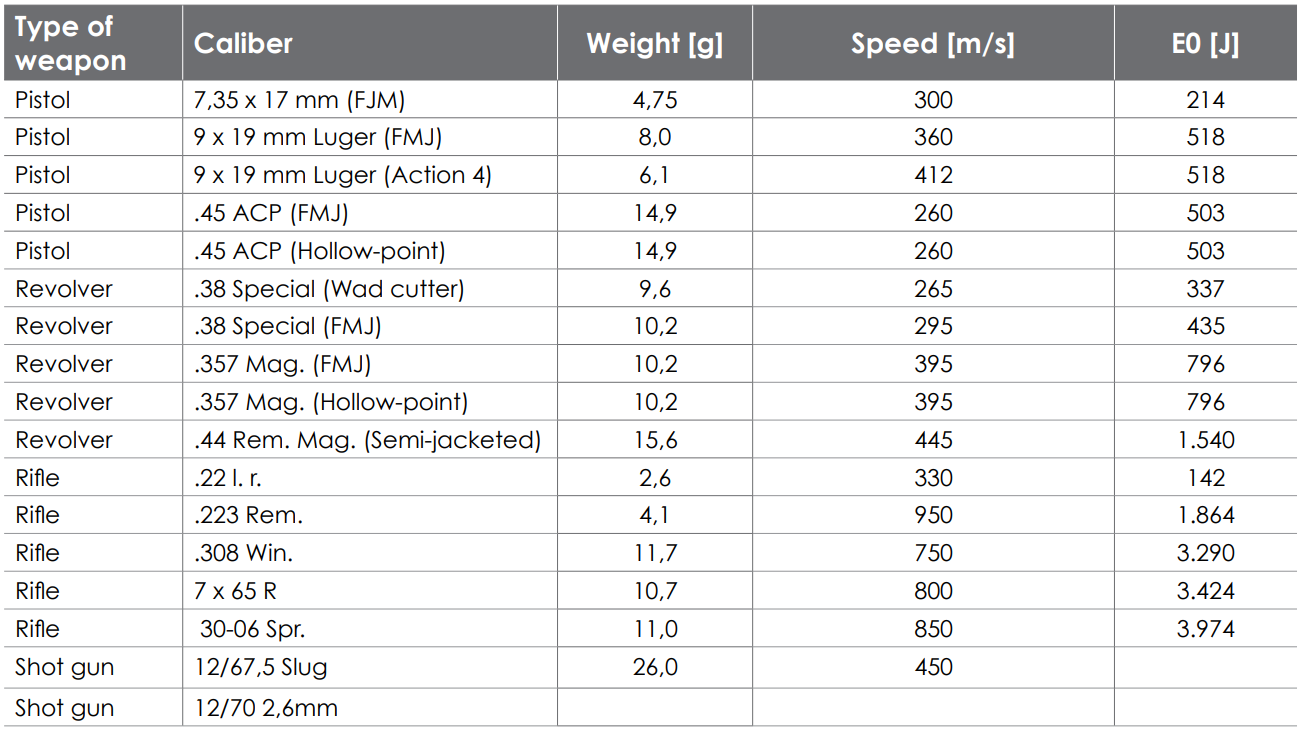

Based on our RUTEC R5000 granules, the R9000 is a compact, yet highly effective, granular basement trap and can be easily integrated into existing ranges. The RUTEC R9000 pipe bullet trap combines the advantages of hard and soft bullet trap systems. It is extremely space-saving with an installation depth of approx. 0.65 m and with the ability to absorb energies of up to 2,500 joules without the bullet disassembling and releasing pollutants. Thus, this system can be used for a variety of projectiles and calibers. For higher energies, the system can easily be supplemented by another series of pipe segments.

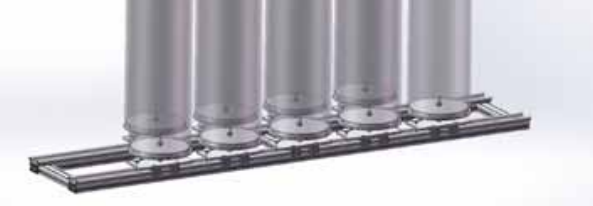

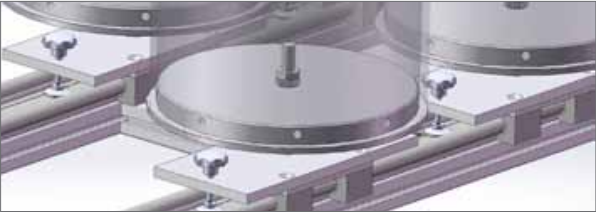

The basic structure consists of two successively slightly staggered rows of pipe segments, which are filled with highly wear-resistant PUR granules. The special design ensures that a complete segment always has to be penetrated, even with the most diverse firing angles. The cylindrical structure enables the segments to turn by up to 360◦, resulting in maximum service life of each individual pipe segment. By using modules of different sizes, wear and replacement can be controlled in a targeted manner. The connection of the segments by means of a flange system makes it possible to replace individual components simply, quickly and cost-effectively and without tools
